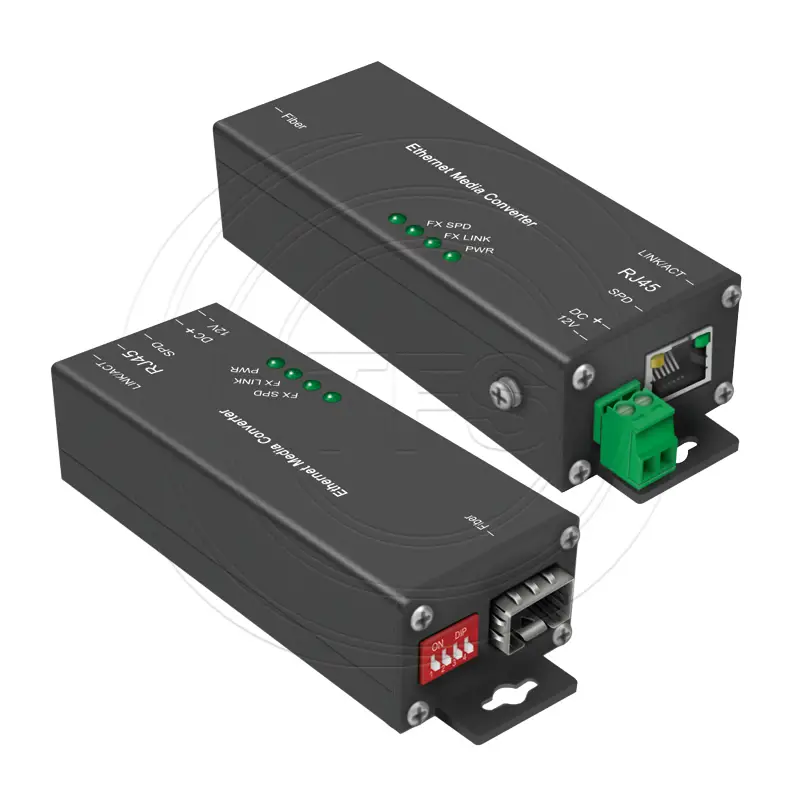

Key Features
Industrial-Grade Construction:
- IP40 rated metal housing
- Designed for harsh industrial environments
Flexible Media Conversion:
- Converts 10/100/1000Base-TX to 1000Base-FX
- Supports multiple connector types: SFP, SC, ST, LC
- Compatible with both Multi-Mode and Single-Mode fiber
Auto-Negotiation & Configuration:
- Auto MDI-MDIX crossover
- Full/half duplex compatibility
- IEEE 802.3x flow control support
Easy Monitoring & Management:
- LED indicators for network activity monitoring
- DIP switch configuration for different settings
- Plug-and-play operation
Ideal For
- Industrial Facilities: Factories, warehouses, and processing plants
- Transportation Systems: Railway, highway, and metro networks
- Outdoor Deployments: Extreme temperature environments
- Critical Infrastructure: Power plants, utilities, and telecom
Connector Notes
Fiber Port Options:
- SFP, SC, ST, o LC connectors available
- Supports both Multi-Mode and Single-Mode fiber
- Transfer distance depends on fiber type and wavelength
Ethernet Port:
- 10/100/1000Base-TX RJ45 connector
- Supports Cat5/5e/6 cables
📊 Technical Specs
| Parameter | Value |
|---|---|
| Standard | IEEE802.3u, IEEE802.3z, IEEE802.3ab |
| Latency | 1us |
| Max Frame Size | 12K |
| Power Consumption | <3W |
| Copper Port | 1x 10/100/1000Base-T RJ45 |
| Fiber Port | 1x 1000Base-X SFP |
| Dimensions | 1.02″ x 1.54″ x 4.65″ (26x39x118mm) |
| Operating Temp | -40°C to 85°C |
| Storage Temp | -40°C to 85°C |
| Humidity | 5% to 95%, non-condensing |
Applications
- Industrial Automation: Machine-to-machine communication
- Process Control: Data transmission in manufacturing
- Security Systems: Industrial camera networks
- Utility Networks: Power grid and water management systems
Need advice on connector selection? Contact our experts
