Engineering Considerations for High-Resilience, EMI-Immune Data Links

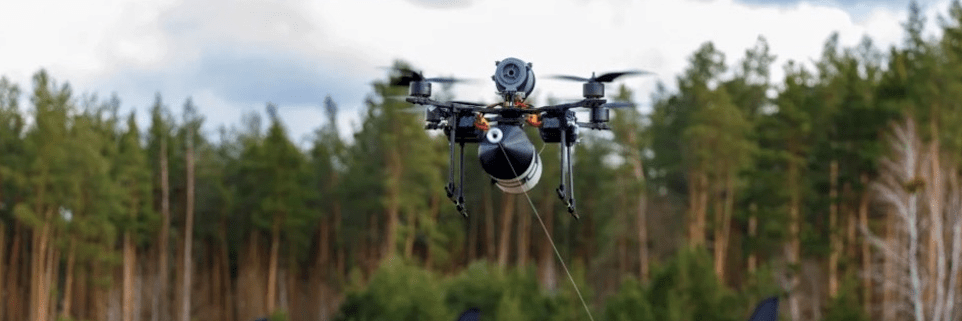

The rapid evolution of unmanned aerial systems (UAS) operating in electronically contested environments has significantly increased demand for physically secure communication links. Ultra-thin 0.25 mm optical fiber has emerged as a critical enabling technology for tethered UAV platforms requiring deterministic performance, high bandwidth, and immunity to electromagnetic interference.
1. Fiber Construction and Physical Characteristics
- Standard telecommunications-grade optical fiber consists of:
- 125 µm glass cladding
- Primary coating bringing total diameter to 245–250 µm
- Key Engineering Parameters:
- Diameter: 245–250 µm
- Weight: ~0.05–0.07 g/m
- Tensile strength (standard SMF): 3–5 N
- Minimum static bend radius: 10–15 mm
A 10 km spool weighs approximately 0.5–0.7 kg, making long-distance tether deployment feasible for lightweight UAV architectures.
2. Why Optical Fiber for UAV Data Links?
Unlike RF-based systems, optical fiber eliminates electromagnetic emissions and provides deterministic, interference-free communication.
- Core Advantages:
- Zero RF signature
- Immunity to jamming and spectrum congestion
- Extremely low latency
- High-bandwidth transmission (HD/4K video, telemetry, sensor data)
3. Mechanical Engineering Challenges
The primary engineering constraint of 0.25 mm fiber is mechanical durability under dynamic payout conditions.
- Critical Design Factors:
- Controlled spool friction and payout geometry
- Dynamic tension damping
- Vibration and microbend prevention
- Environmental resistance (temperature, abrasion, wind loading)
4. Reinforcement and System Optimization
Advanced UAV integration requires strengthening the fiber without significantly increasing diameter or mass.
- Common Engineering Enhancements:
- Secondary micro-polymer overcoats
- Aramid yarn integration
- Precision-engineered payout cartridges
- Real-time tension monitoring systems
5. Performance Comparison
| Parameter | RF Link | Satellite | 0.25 mm Optical Fiber |
| EMI Immunity | Low | Moderate | Very High |
| Latency | Variable | Higher | Very Low |
| RF Emission | Yes | Yes | None |
Conclusion
Fiber cables 0.25 mm provides a high-reliability physical layer for UAV systems operating in electromagnetically congested environments. Its effectiveness depends on precision mechanical integration, intelligent payout control, and robust environmental design.
At Tactical Fiber Systems, engineering focus extends beyond the fiber itself to the complete deployment architecture—ensuring optical integrity under real-world dynamic conditions.
