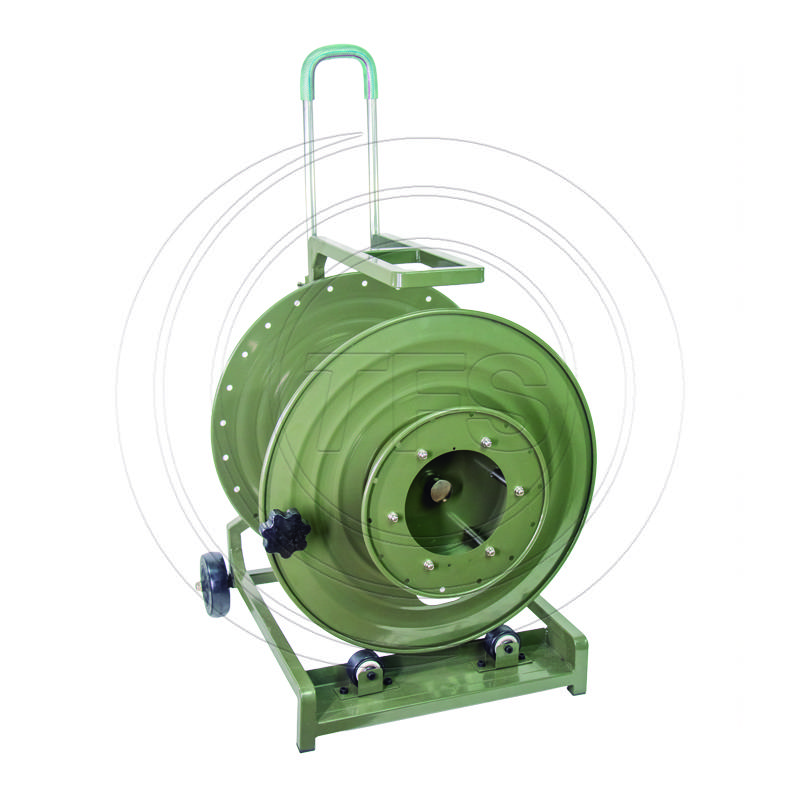

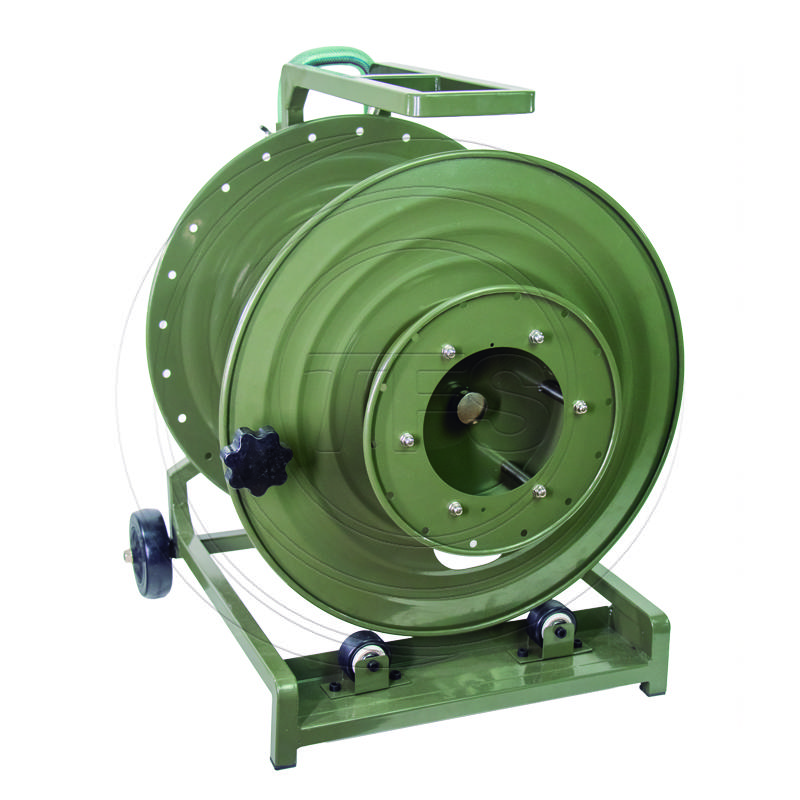

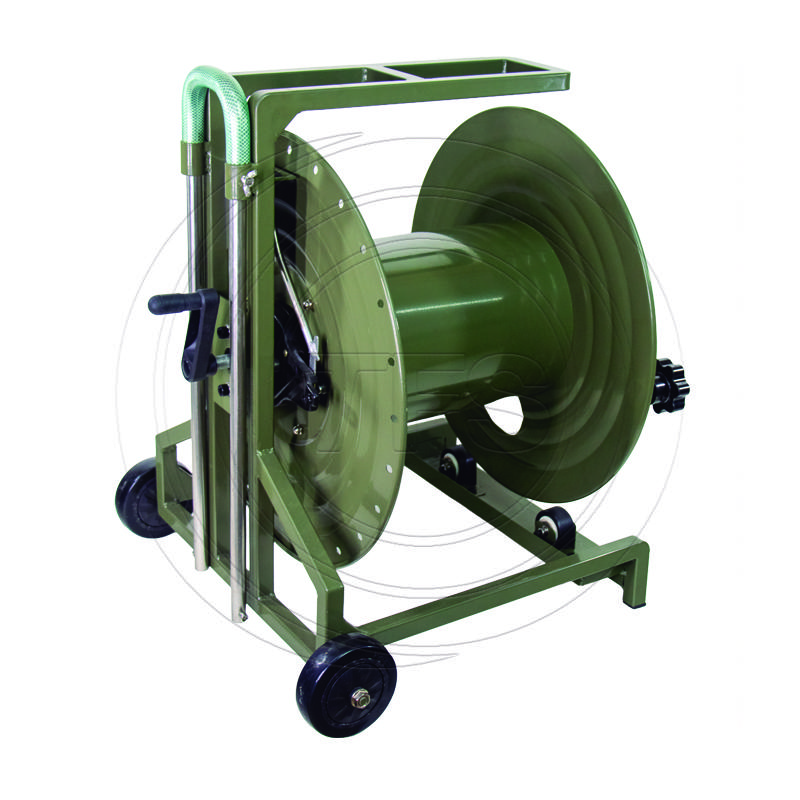

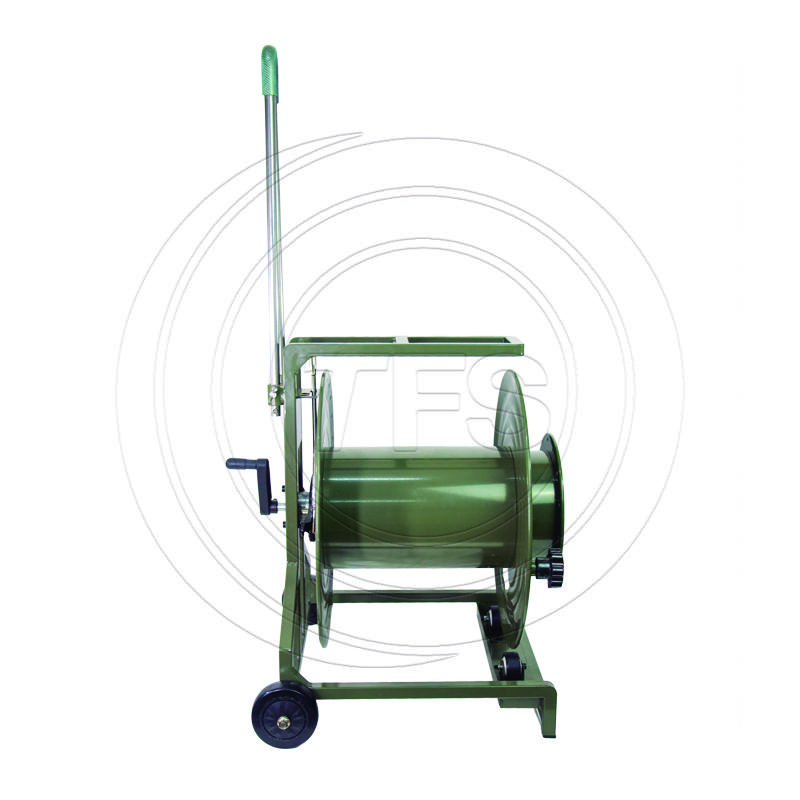

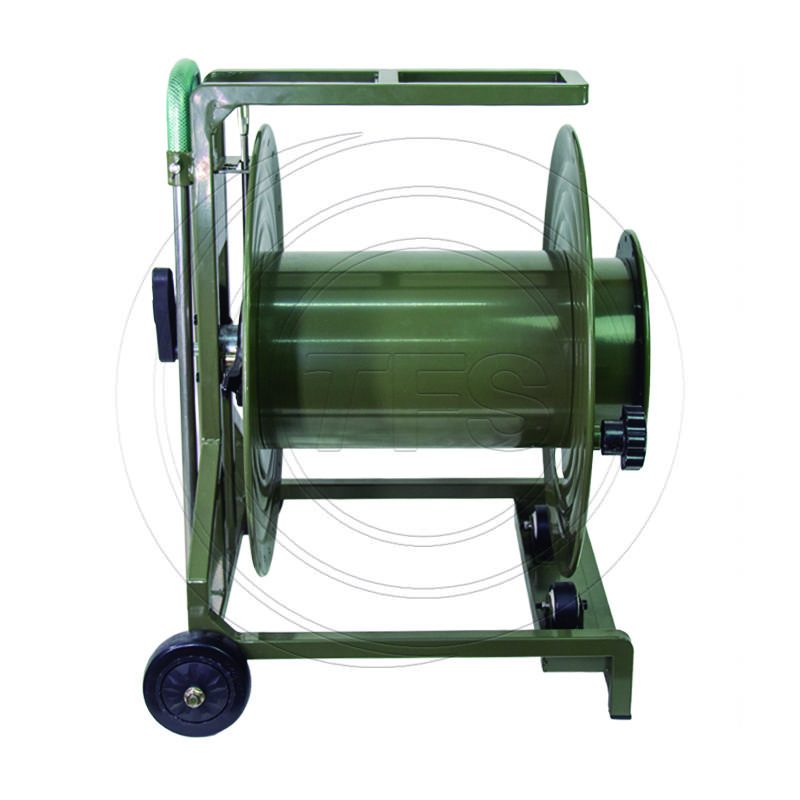

TFS Empty Metal Cable Reel – BX-10

The TFS BX-10 Empty Metal Cable Reel is a high-capacity storage and deployment solution designed for professional cable handling in telecom, industrial, field, and broadcast environments.

With its all-metal construction and wider reel body, the BX-10 is optimized for longer cable lengths while maintaining a portable and field-ready design. It offers efficient transport, controlled winding, and reliable performance for operators who need greater cable capacity without compromising durability.

Key Features

• All-metal construction for high durability
• Increased capacity for longer cable lengths
• Three-speed manual adjustment for controlled cable handling
• Pull rod and pulley system for easier field transport
• Optimized for cable deployment and recovery
• Suitable for fiber optic, signal, and other technical cables

Applications

• Longer fiber optic cable deployment
• Telecommunications infrastructure
• Temporary field communication systems
• Broadcast and rental systems
• Industrial and technical cable handling
• Maintenance and service operations

Technical Specifications

• Model: BX-10
• Construction: All-metal portable reel
• Main reel diameter: Ø450 mm
• Shaft diameter: Ø200 mm
• Main reel width: 300 mm
• Product dimensions: 575 × 495 × 510 mm
• Package dimensions: 600 × 560 × 580 mm
• Net weight: 15 kg
• Gross weight: 22 kg
• Recommended cable OD: 3.0 mm to 10.0 mm
• Operating concept: Three-speed manual adjustment with pull rod and pulley
• Optional note: Rear rocker optional depending on configuration

Advantages

• Higher capacity for extended cable lengths
• Durable design for repeated use in demanding environments
• Improves cable organization and deployment efficiency
• Portable format for professional field operations
• Well suited for longer fiber and technical cable runs

Cable Capacity

Need a custom configuration?
Contact our team for tailored fiber solutions based on your operational requirements. Contact our experts
